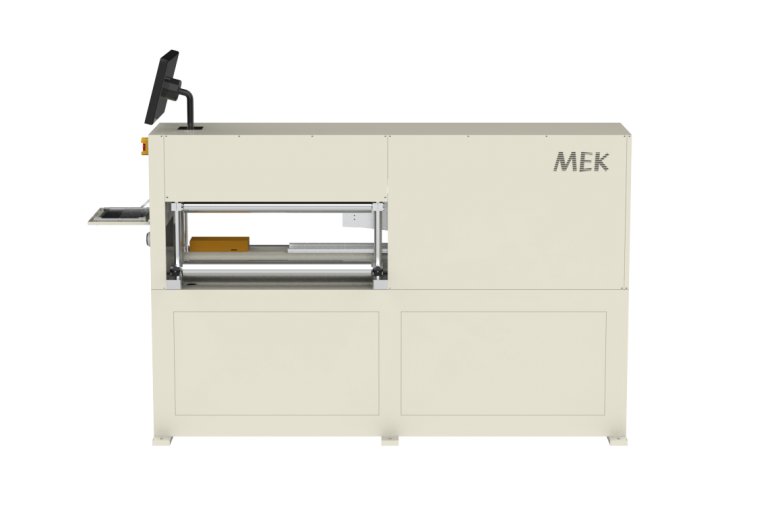

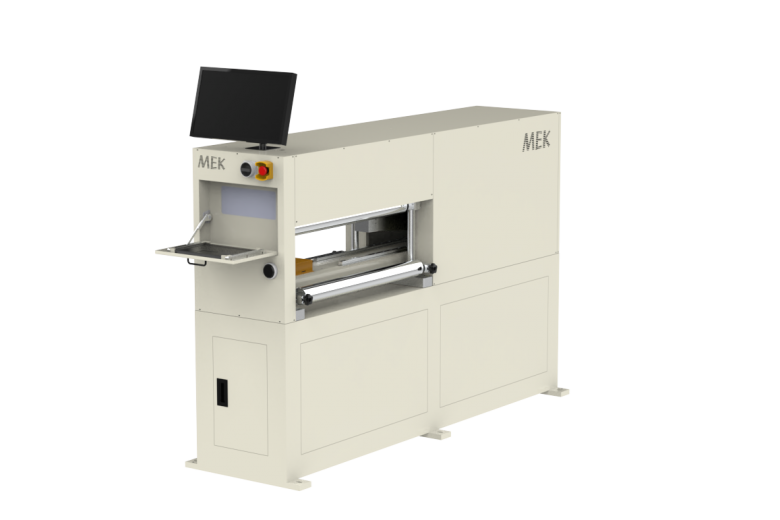

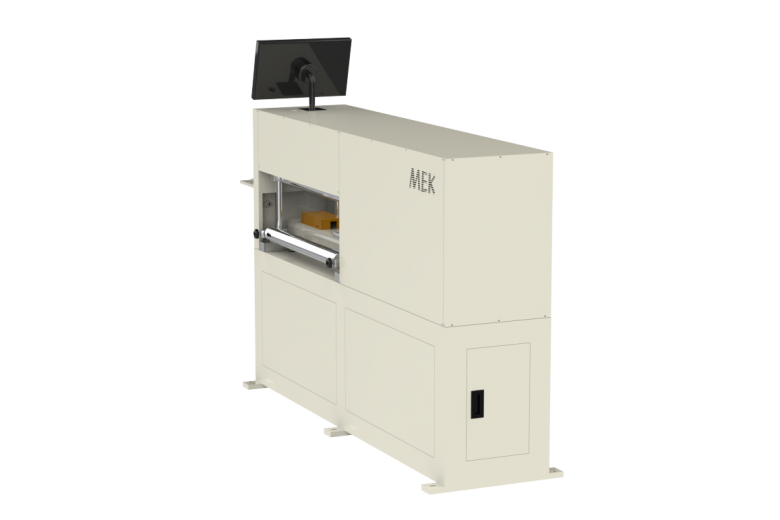

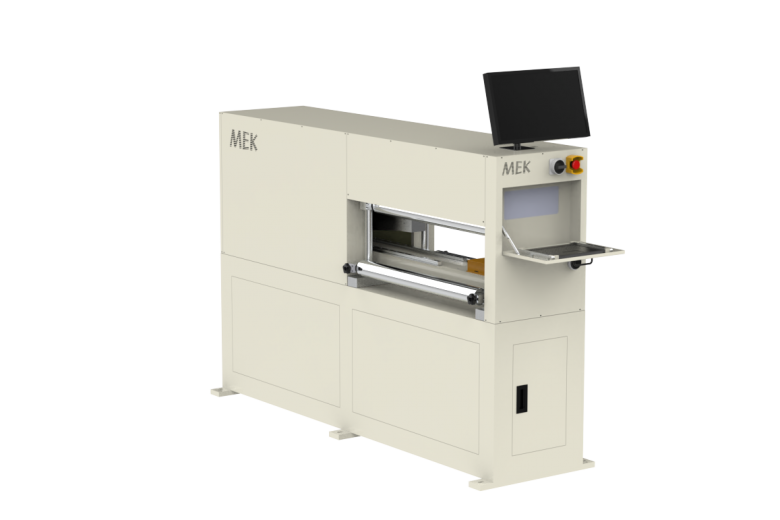

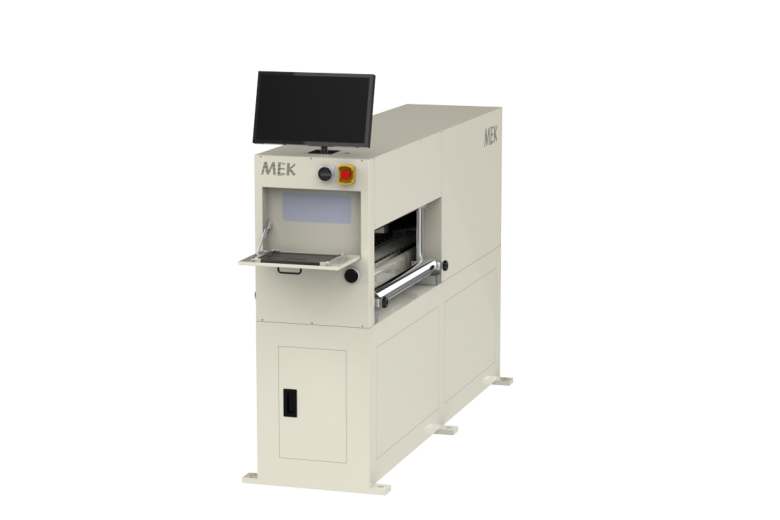

1050H Thickness Gauge
■ One-size-fits-all Type
3-piece integrated gauge
- Thickness, Weight Measurement (Thickness, Weight, Density Simultaneous Analysis)
- + Integrate automation with contact thickness gauge
The whole process of cathode, anode, coating, and press used in the production of secondary batteries can be integrated into one measuring instrument.
3-piece integrated gauge
- Thickness, Weight Measurement (Thickness, Weight, Density Simultaneous Analysis)
- + Integrate automation with contact thickness gauge
The whole process of cathode, anode, coating, and press used in the production of secondary batteries can be integrated into one measuring instrument.
|
SPECIFICATIONS
| Description | |
|---|---|
| Application | For secondary battery electrode plate manufacturing process, coating,Roll Press |
| range | 0.03mm~3.6mm |
| width | max. 1,000mm(C-Frame), max.2,000mm(O-frame) |
| Pitch | 1mm (0.5-10mm) |
| Spot size | 70µm/300µm |
| Operating temperature | Up to 45℃(60℃) |
| Option 1 | Thickness, Weight, Integral cathode Con+β-ray anode Con+X-ray (Simultaneous analysis of thickness, weight and density) |
| Option 2 | Option 1 + Touch Type Automatic Measurement Gauge Resolution: 0.1µm |
PROGRAM SOFTWARE
MEKプログラムの特徴
• ユーザーフレンドリーな構成 - 直感的なインターフェース
• 利用可能な言語 - 英語、中国語、日本語
• ユーザーHMIと計測データ通信(選択仕様)
• ユーザーの要求に合わせてカスタマイズ可能
デフォルト画面
| Description | |
|---|---|
| Run Environment | Self-made software based on Labview |
| Data display | gsm (basis weight) / um (thickness) Spatial resolution : 1mm |
| Data compatibility | Microsoft Excel, CSV |
| Functions | Full automatic edge detection Full mapping of entire LOT (2D & 3D reconstruction) Real-time Profile & SPC (Staitstical-Process-Control) Trend chart FFT (Fast-Fourier-Transform) Analysis of MD Profile LOT Statistics & History 4 & 20 Scan Sigma |
| Language | English, Korean, Chinese, Japanese (Hungarian translation available upon request) |
APC(Automatic Profile Control)
MEKプログラムの特徴
- • 最適化された厚さ制御アルゴリズム
- • 迅速な厚さ制御
- • 自動マッピング: センターボルト基準
- • 滑らかなミルロールの外観
- • 数マイクロメートル以内の制御ゲイン自動調整
- • ダイボルト温度フィードバック制御（オプション仕様）
- • MD（マシン方向）制御可能（オプション仕様）
APC適用後のプロファイル変化

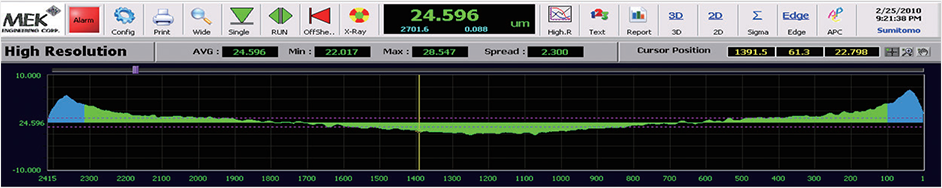

Before
APC control begins after the target thickness is changed to 60㎛ to 30㎛

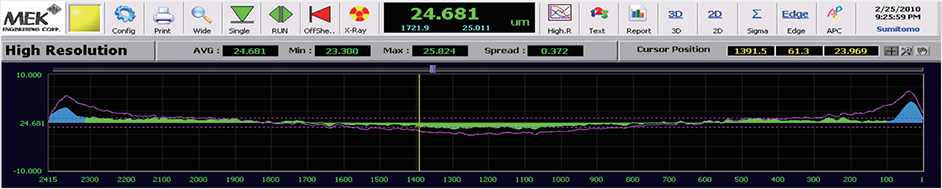

After 5min
Regulates Control Gain of auto-die, reducing variation in thickness

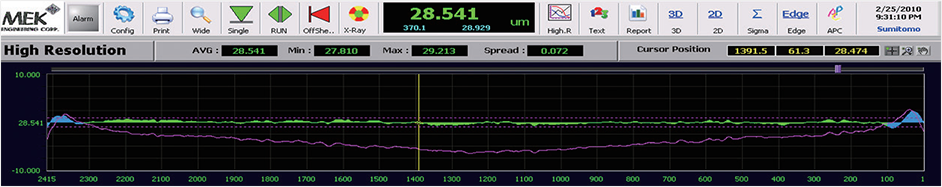

After 10min
Steadily analyzes and controls the thickness profiles

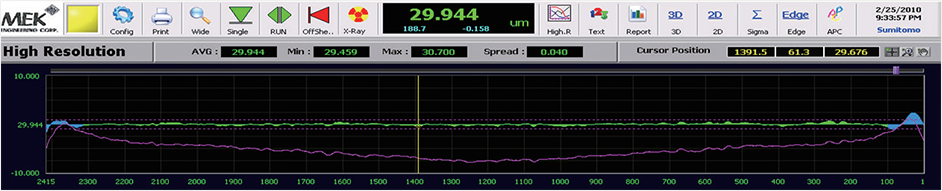

After 15min
Within 15min, produces the best result
