6800X Thickness Gauge
본문
페이지 정보

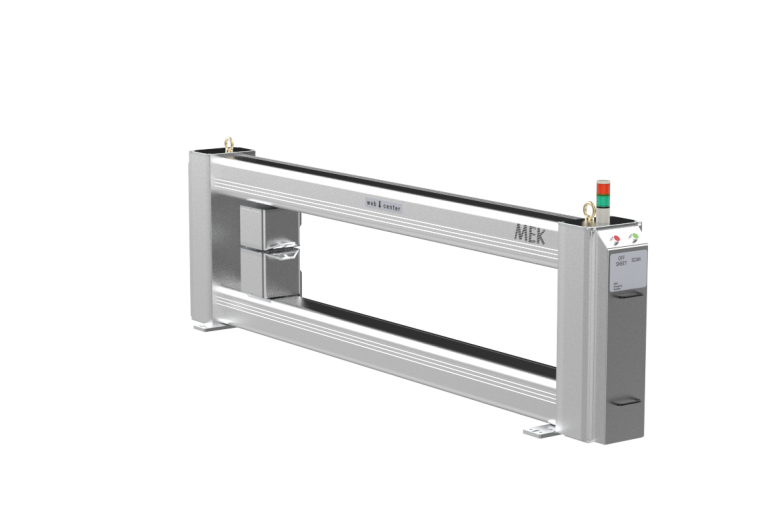

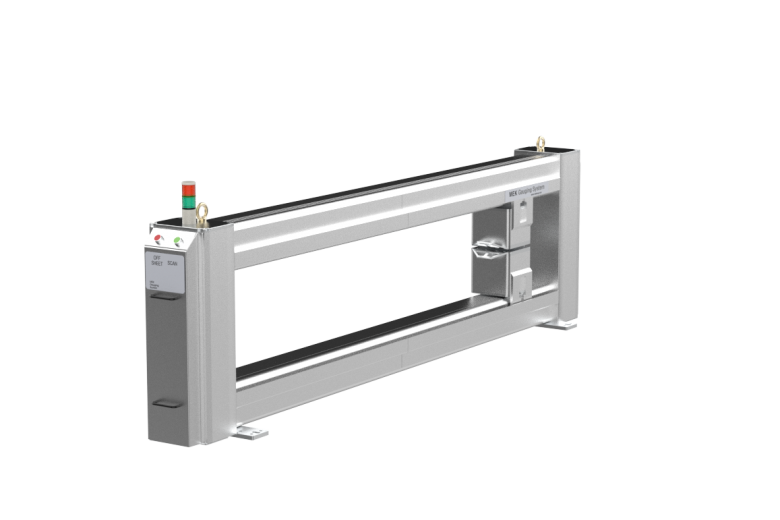

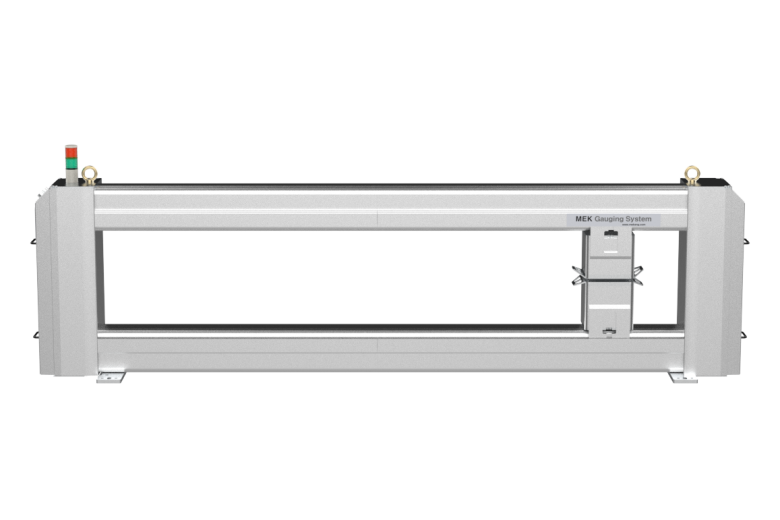

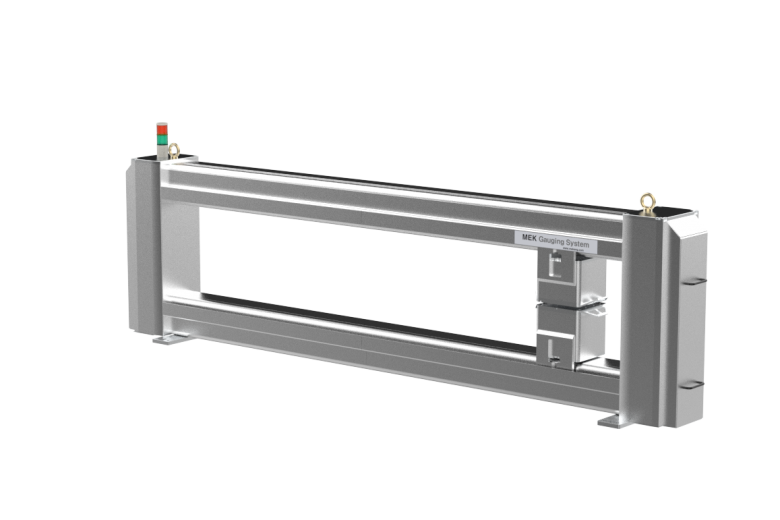

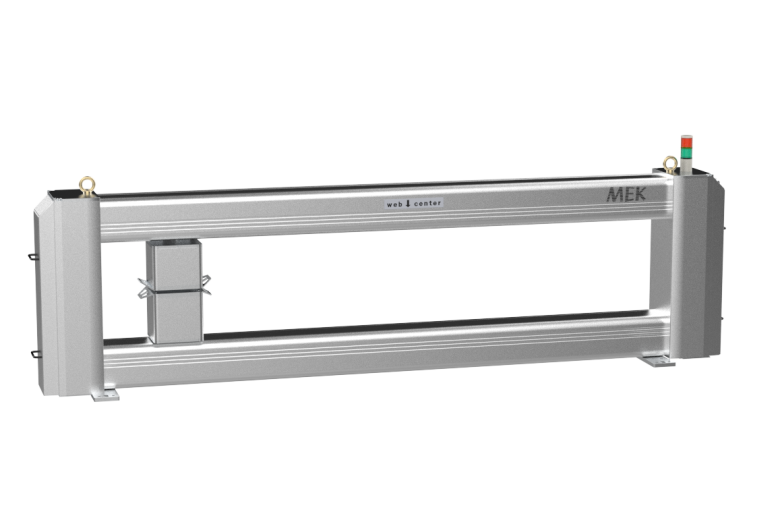

6800X Thickness Gauge
The easy control and simple to maintain,
Precise X-ray sensor enables to measure and control the thickness automatically in various applications.
※ Notification of usage for the radiation generator is required.
Precise X-ray sensor enables to measure and control the thickness automatically in various applications.
※ Notification of usage for the radiation generator is required.
|
SPECIFICATIONS
| Description | |
|---|---|
| Application | Film/sheet extrusion, coating, metals, paper, etc. |
| Measuring range | 0-350gsm, 0-4,000gsm |
| Measuring width | 2,500mm |
| Measurement pitch | 1mm (0.5-10mm) |
| Collimator size | ф7 |
| Scanning speed | 150mm/sec (50~350mm/sec) |
| Measuring gap | 10mm (8~38mm) |
| Operating temperature | Up to 45℃ |
| Repeatability | ±0.015µm or ±0.01%(PET), ±0.0002µm (Cu) |
| Streak analysis | 0.05mm |
PROGRAM SOFTWARE
Features of the MEK Program
• User-friendly Configuration - Intuitive Interface
• Language Options - English, Chinese, Japanese
• User HMI and Measurement Data Communication (Optional)
• Customization to Suit User Requirements
Default Screen
| Description | |
|---|---|
| Run Environment | LabVIEW-based proprietary software |
| Data display | gsm (basis weight) / um (thickness) Spatial resolution: 1mm |
| Data compatibility | Microsoft Excel, CSV |
| Functions | Full automatic edge detection Full mapping of entire LOT (2D & 3D reconstruction) Real-time Profile & SPC (Statistical Process Control) Trend chart FFT (Fast Fourier Transform) Analysis of MD Profile LOT Statistics & History 4 & 20 Scan Sigma |
| Language | English, Korean, Chinese, Japanese (Hungarian translation available upon request) |
APC (Automatic Profile Control)
Features of the MEK Program
- • Optimized thickness control algorithm
- • Fast thickness control
- • Auto Mapping: Center bolt reference
- • Smooth Mill Roll appearance
- • Automatic adjustment of Control Gain within a few microns
- • Die bolt temperature feedback control (optional)
- • MD (Machine Direction) control available (optional)
Profile Changes After Applying APC

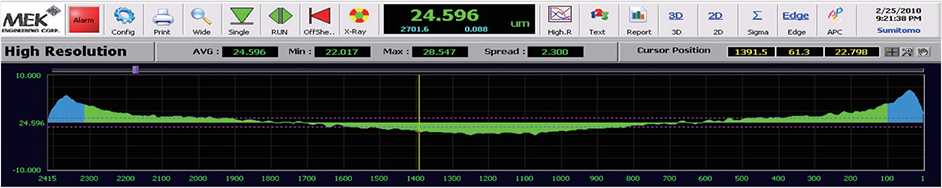

Before
APC control begins after the target thickness is changed from 60㎛ to 30㎛

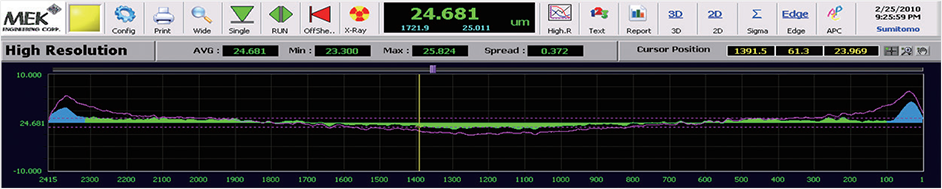

After 5 minutes
Regulates Control Gain of the auto-die, reducing variation in thickness

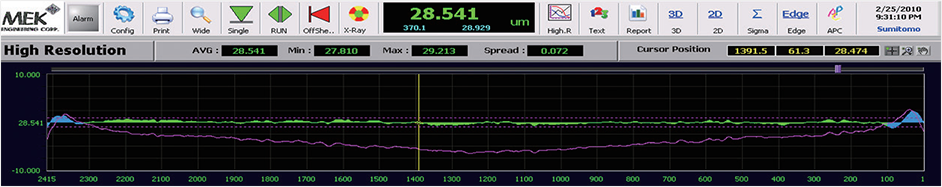

After 10 minutes
Steadily analyzes and controls the thickness profiles

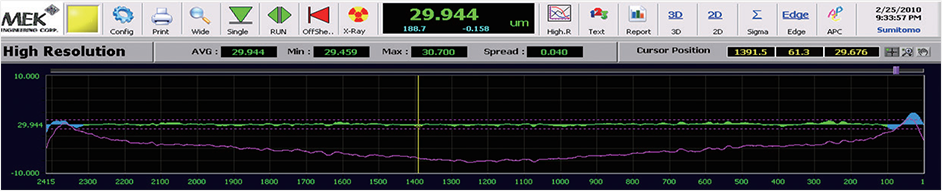

After 15 minutes
Within 15 minutes, produces the best result
