MEK Web Cleaner is a non-contact device that removes foreign substances from the surfaces of sheets and films.

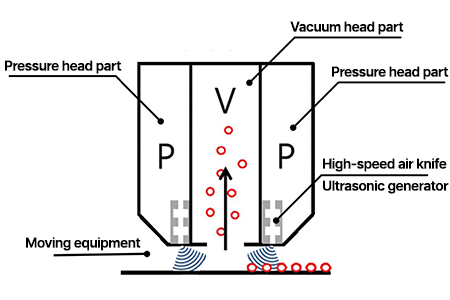

In the head divided into the Vacuum and Pressure sections, air is expelled and dust is suctioned, resulting in the product surface becoming clean during the production process.
On-line, non-contact cleaner removes the foreign particles on the web surface.
• PVP

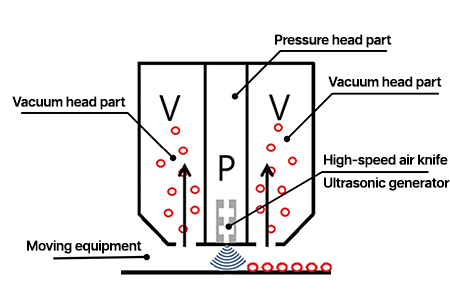

• VPV

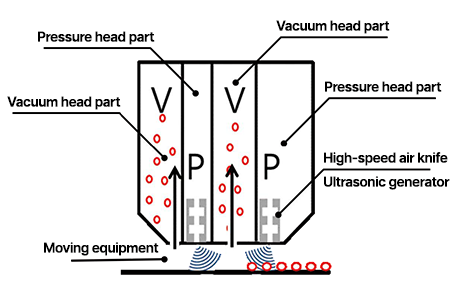

• VPVP

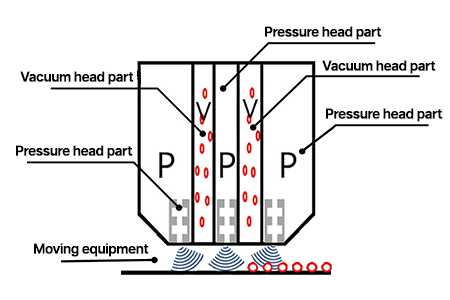

• PVPVP
** (P : Pressure / V : Vacuum)
Ultrasonic wave generation: 138dB or above.
Automatic control of pressure & volume.
Design for no thermal deformation: Prevent the scratch on the product due to irregular thermal expansion.

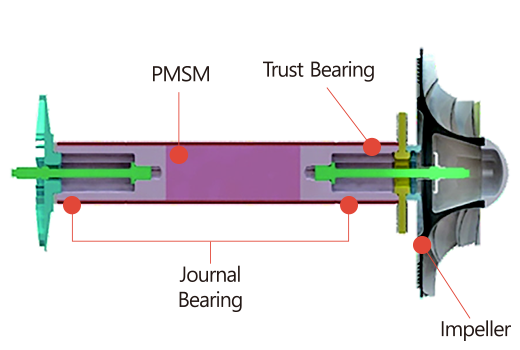

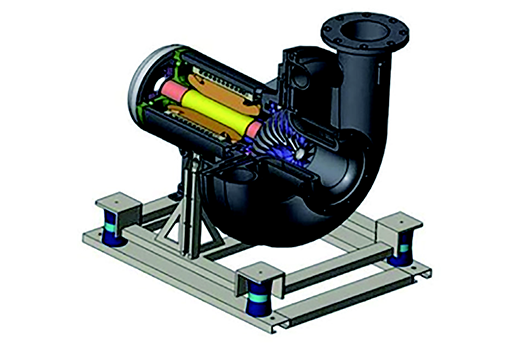

Motor & Impeller co-axial structure with air foil bearing employed. Energy saved & Noise reduced. (Below 80dB, Rpm: 15000~50000)
Simple and smart design of integrated support frame and air duct need no air hose. That overcome space constraint at slitter.
Maintenance-easy: There are no parts that require frequent maintenance such as blower bearing and belt.
Direct Connection
Structure
Take - up
Coating Process
Slitter
